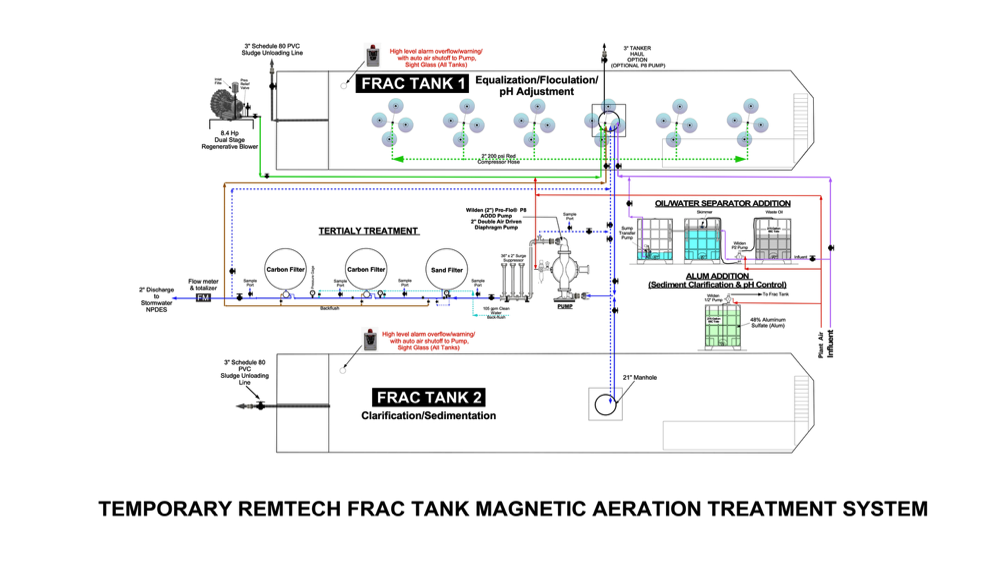

Convert your frac tanks or steel tanks into temporary or extended life mobile wastewater/stormwater/groundwater treatment systems or dewatering treatment systems. Remtech has developed a proprietary modular wastewater treatment system that converts conventional rental FRAC TANKS into temporary treatment plants during plant cleaning, repairs or expansions. Remtech’s FRACAIR MAGNETIC AERATION SYSTEM provides adjustable airflow rates and retention times to create aerated grit chambers, equalization/mixing basins, biological treatment, activated sludge, coagulation/ flocculators, clarifiers, and sludge thickeners for biological or physiochemical treatment.

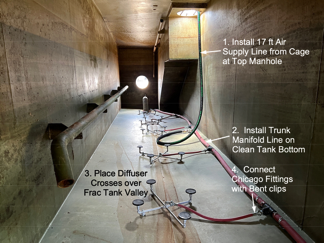

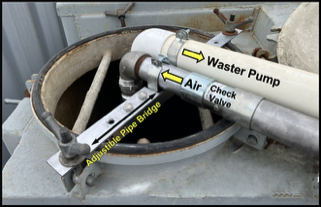

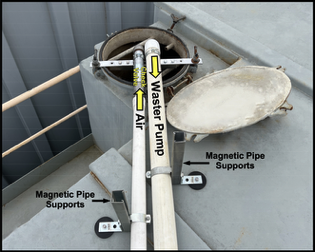

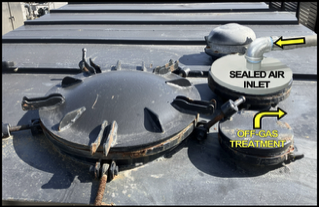

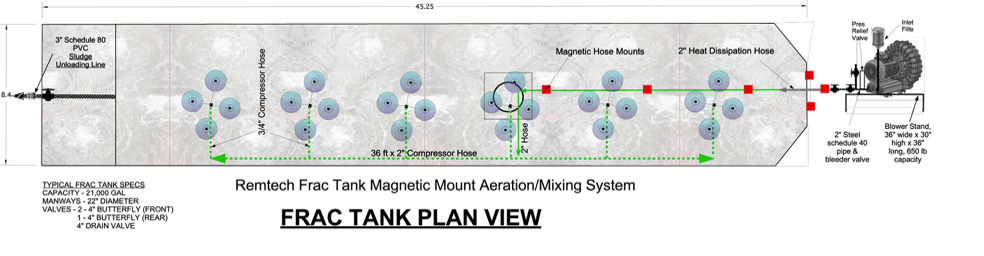

Remtech's magnetic FRACAIR aeration/equalization system fits inside a standard 21,000 gallon frac tank or other steel tanks that offers a cost-effective temporary treatment system. Air manifolds and diffusers are inserted through 20” manholes with quick connects that are held in place by twenty-six (26) 80 pound magnets. Systems can be operational in a short period of time. Magnetic anchoring eliminates permanent alterations of RENTAL tanks. Inlet and outlet hoses/pipes and control valves hydrostatically balance influent and effluent flowrates for up to ten (10) frac tanks connected in parallel for flowrates up to 200,000 gpd.

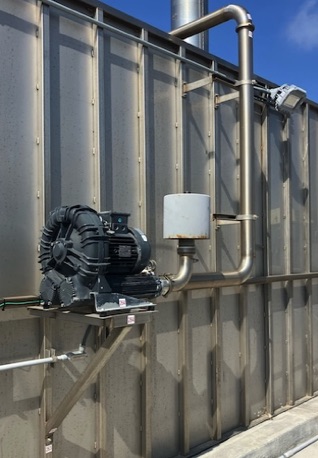

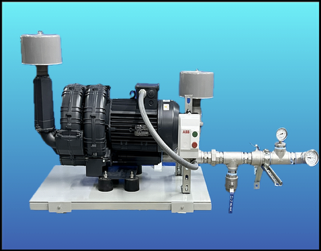

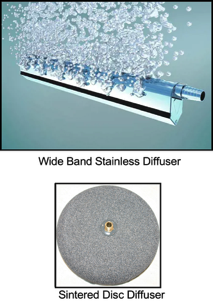

Multistage regenerative, rotary lobe blowers, or conventional 185 cfm trailer mounted compressors supply air if plant air is not available. Piping materials of construction range from schedule 80 PVC to stainless steel depending on temperature requirements, wastewater compatibility, and life cycle requirements. Membrane or sintered bubble diffuser sizes are available in fine, medium or coarse. Sintered diffuser heads can be rotated to maintain solids in suspension. An 8.4 Hp two stage regenerative or 5 to 7.5 Hp rotary lobe blower aerates up to two (2) 21,000-gallon frac tanks reducing power requirements over mechanical mixing by up to 80% per frac tank. Blowers can be designed to aerate individual or multiple tanks.

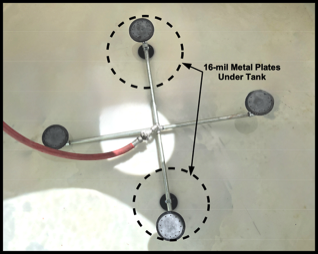

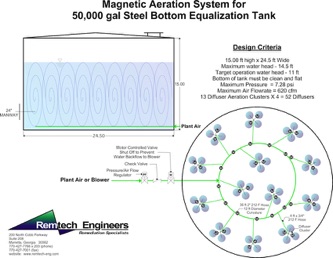

For higher flowrates greater than 200,000 gpd, FRACAIR systems can be installed in larger steel tanks anchored by magnets or membrane lined tanks secured by weights that overcome buoyancy effects.
Tertiary modular treatment options that can be added include, screening, clarification, serpentine neutralization, floculation, filtration, dissolved air floatation, sludge dewatering, or other advanced wastewater treatment systems.
Complete the eform below if you would like a Remtech Engineers to contact you to provide a temporary treatment system to meet your specific requirements.
