FRAC TANK MAGNETIC AERATION TREATMENT and MIXING SYSTEM
Serving Georgia, Tennessee, Alabama, North Carolina, South Carolina, and Florida
Remtech’s FRACAIR and MAGAIR (Magnetic Aeration System) is a cutting-edge solution for rapidly converting frac tanks, steel, poly, and stainless tanks into temporary or permanent wastewater, water, stormwater, groundwater, or dewatering treatment systems. With proprietary magnetic anchoring technology, aeration and mixing systems can be rapidly deployed without drilling, welding, or tank mod-ifications —perfect for rental tanks, short or long-term projects during plant expansions, cleanings, repairs or new treatment processes. MAGAIR SYSTEMS ARE REMOVABLE FOR EASY TANK CLEANING.
KEY BENEFITS:
︎✔︎ Numerous Waste Stream Treatment Applications -Domestic & industrial wastewater, water, landfill leachate, stormwater, dewatering, oil field production wastes, contaminated groundwater & PFAS treatment.

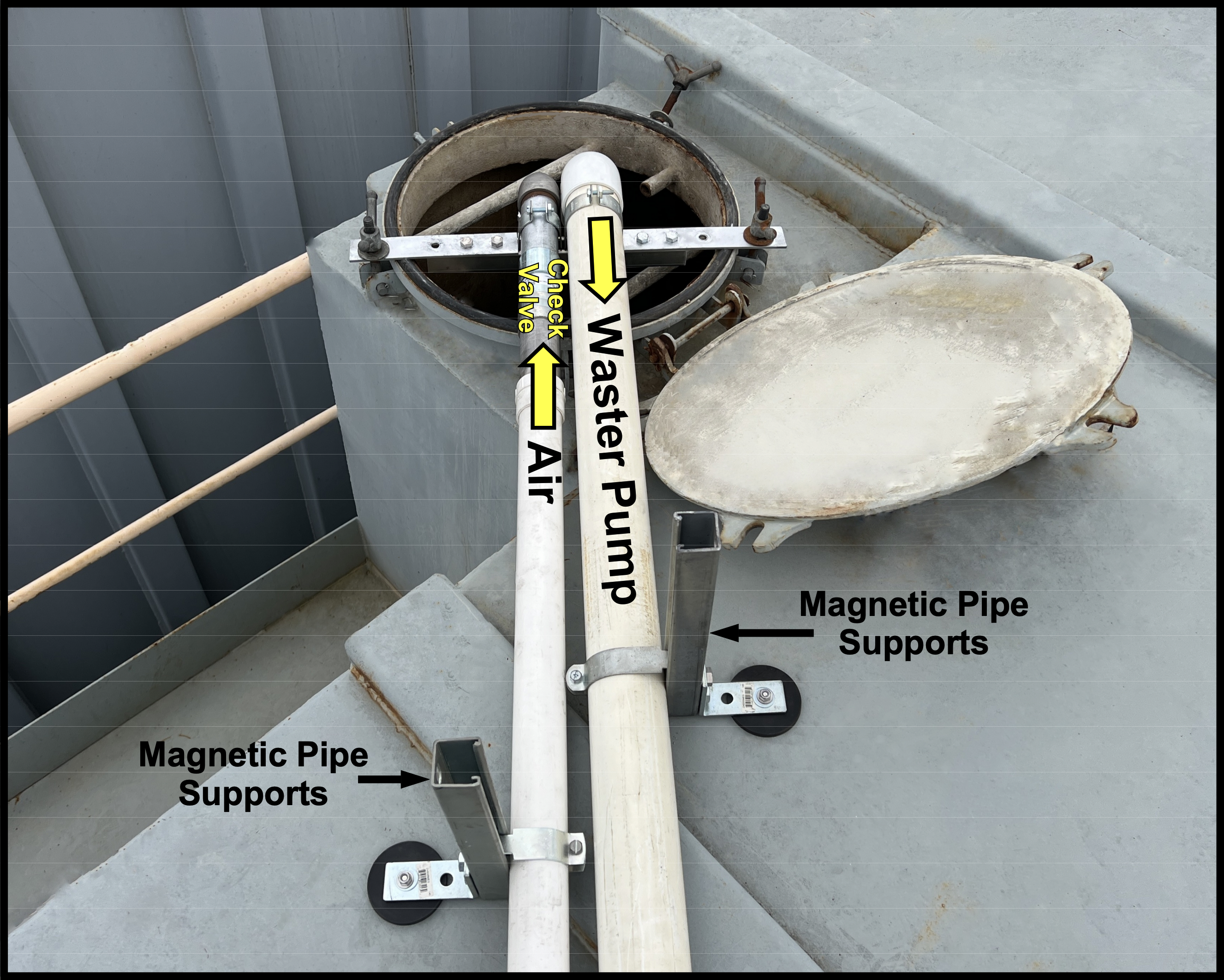

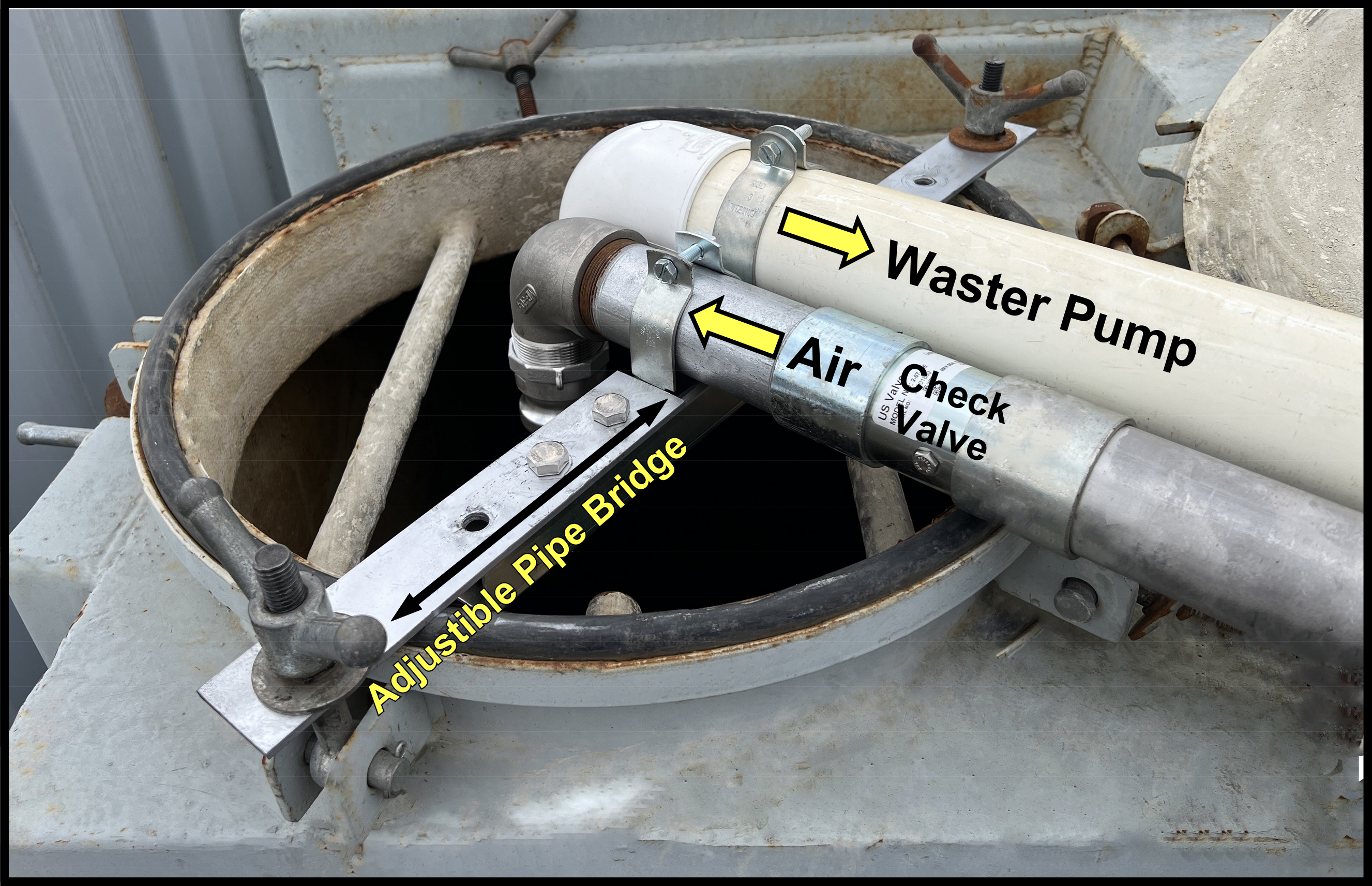

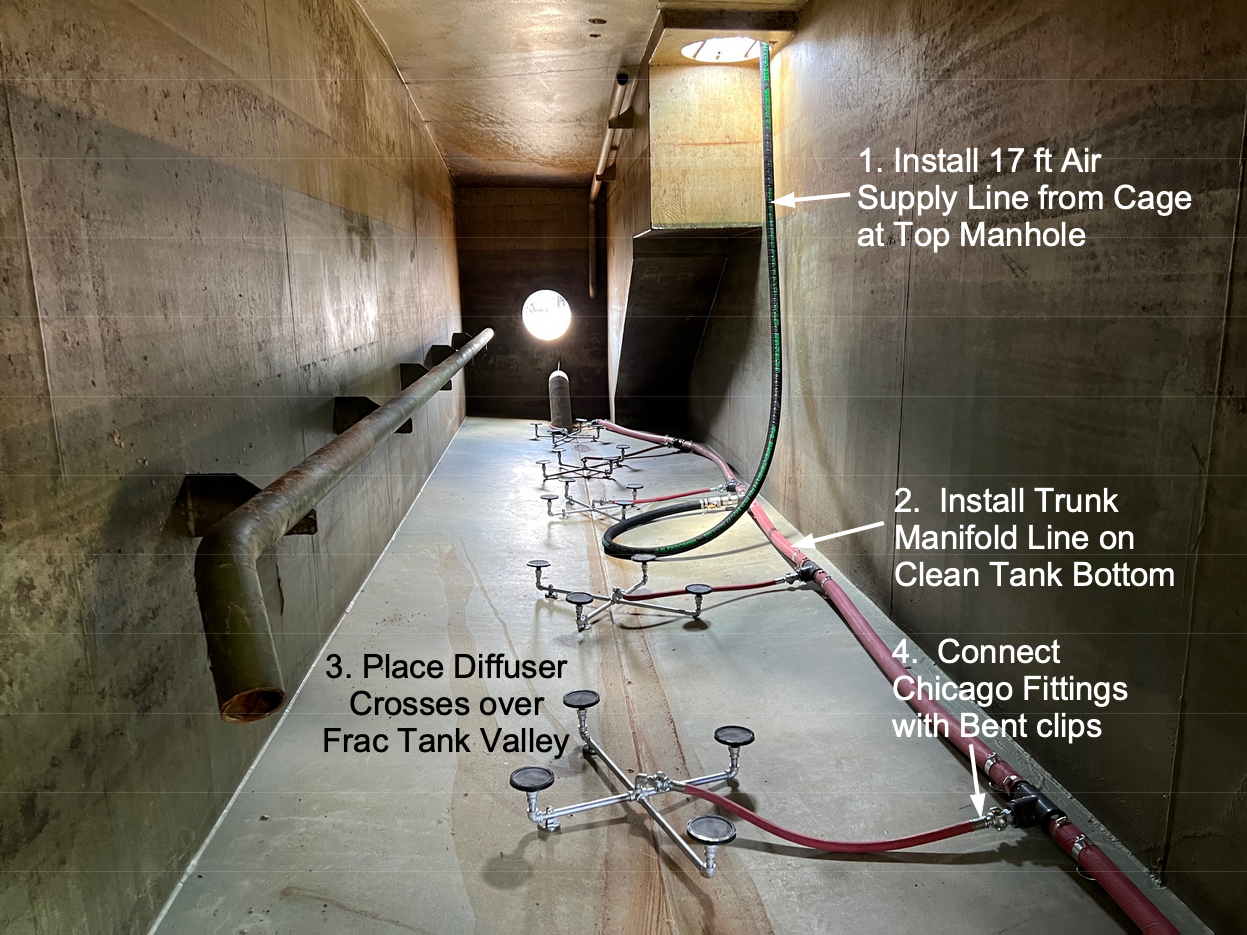

︎✔︎ Fast Installation – Easily installed through 20” manholes and are secured by magnets.
︎✔︎ Versatile Treatment & Mixing Applications –solids, polymer & chemical mixing & blending; neutralization, aeration, aerated grit chambers, equalization, biological treatment, air stripping, floatation, and flocculation.
︎✔︎ Adjustable & Performance Optimization – Variable airflow, bubble sizes, and retention times optimize treatment and mixing.
︎✔︎ Energy Savings Up to 80% – Blower aeration significantly reduces energy costs compared to mechanical mixing.
︎✔︎ Modular & Scalable – Installable in single or multiple tanks for flow rates exceeding 200,000 GPD.

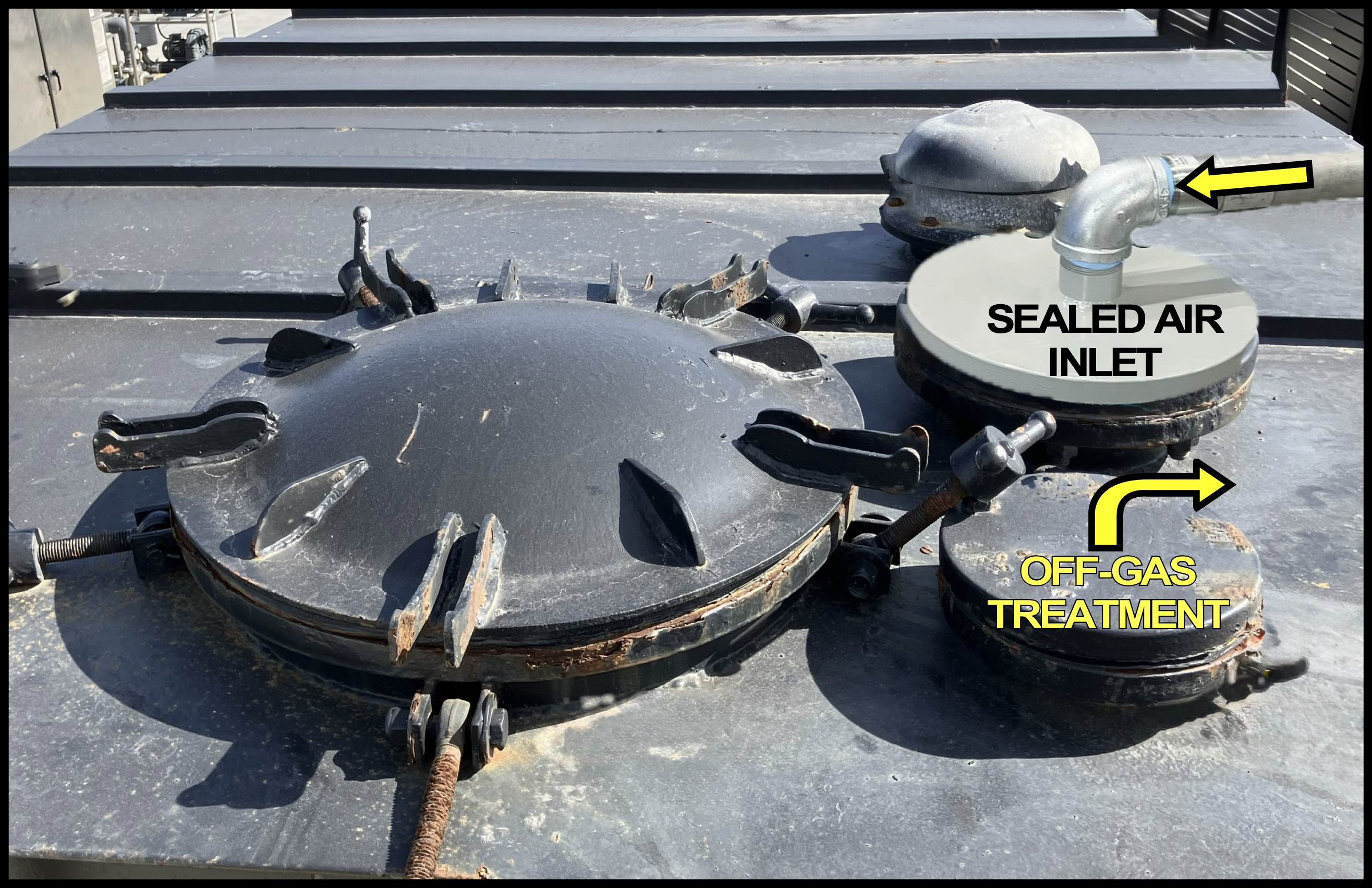

︎✔︎ Odor & Emission Control – Sealed air inlet flanges on tanks allows off-gas capture and treatment with carbon, biobed, or thermal treatment.
FLEXIBLE EQUIPMENT & CUSTOMIZATION:
︎✔︎ Tank Compatibility: Fits 5,000, 10,000, 21,000-gallon, and larger tanks.

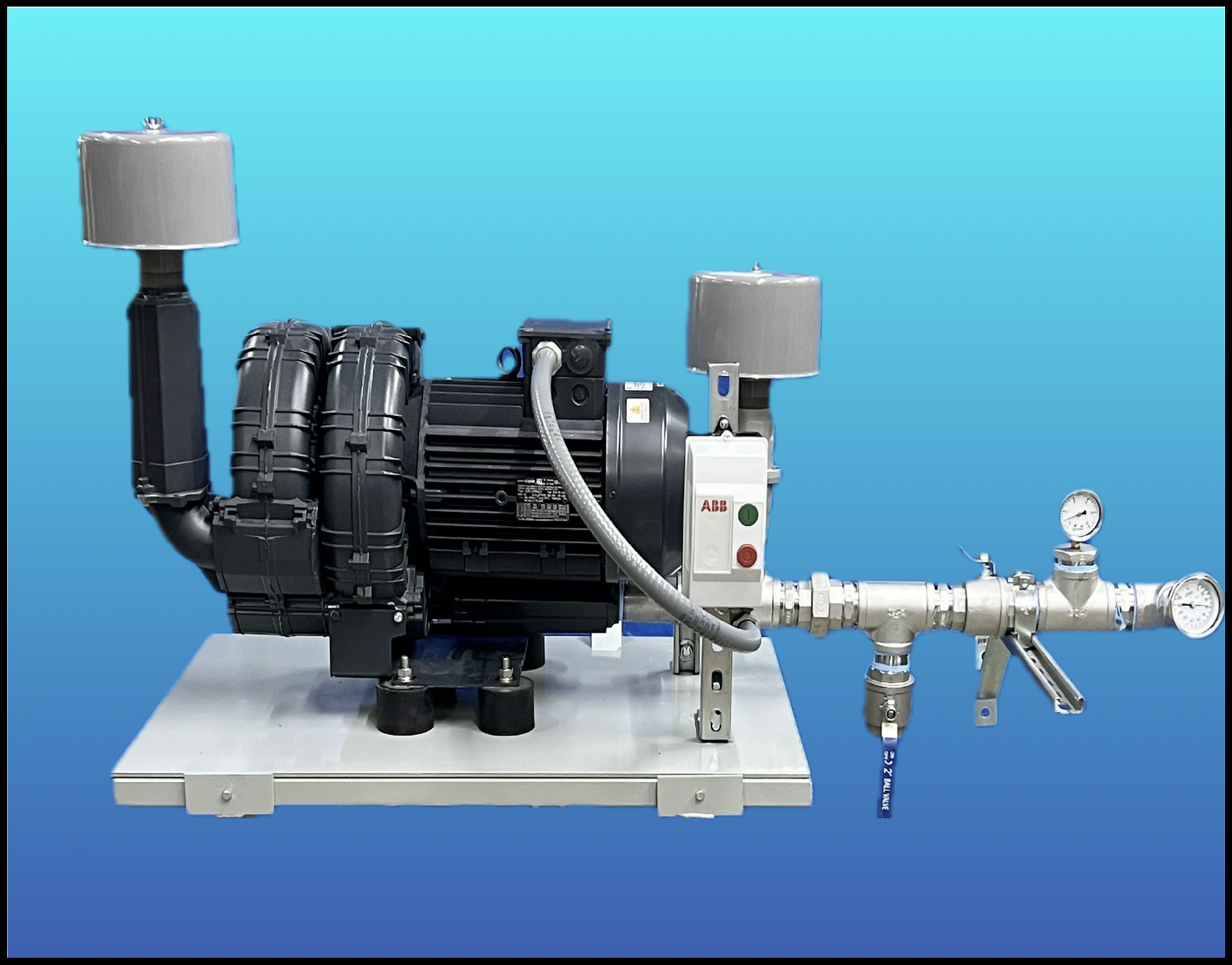

︎✔︎ Air Supply Options: Regenerative, rotary lobe, trailer- mounted compressors or plant air.
︎✔︎ Durable Materials:Materials of construction include schedule polypropylene, schedule 80 PVC, stainless steel, and EPDM elastomers for chemical compatibility.
︎✔︎ Advanced Diffuser Technology: Choice of disc, sintered, or wide band stainless diffusers with fine, medium, or coarse bubble sizes.
︎✔︎ Scalable Blower Systems: 5 to 10 HP blowers aerate individual or multiple tanks.
MAGNETIC ANCHORING FOR POLY OR STAINLESS TANKS:

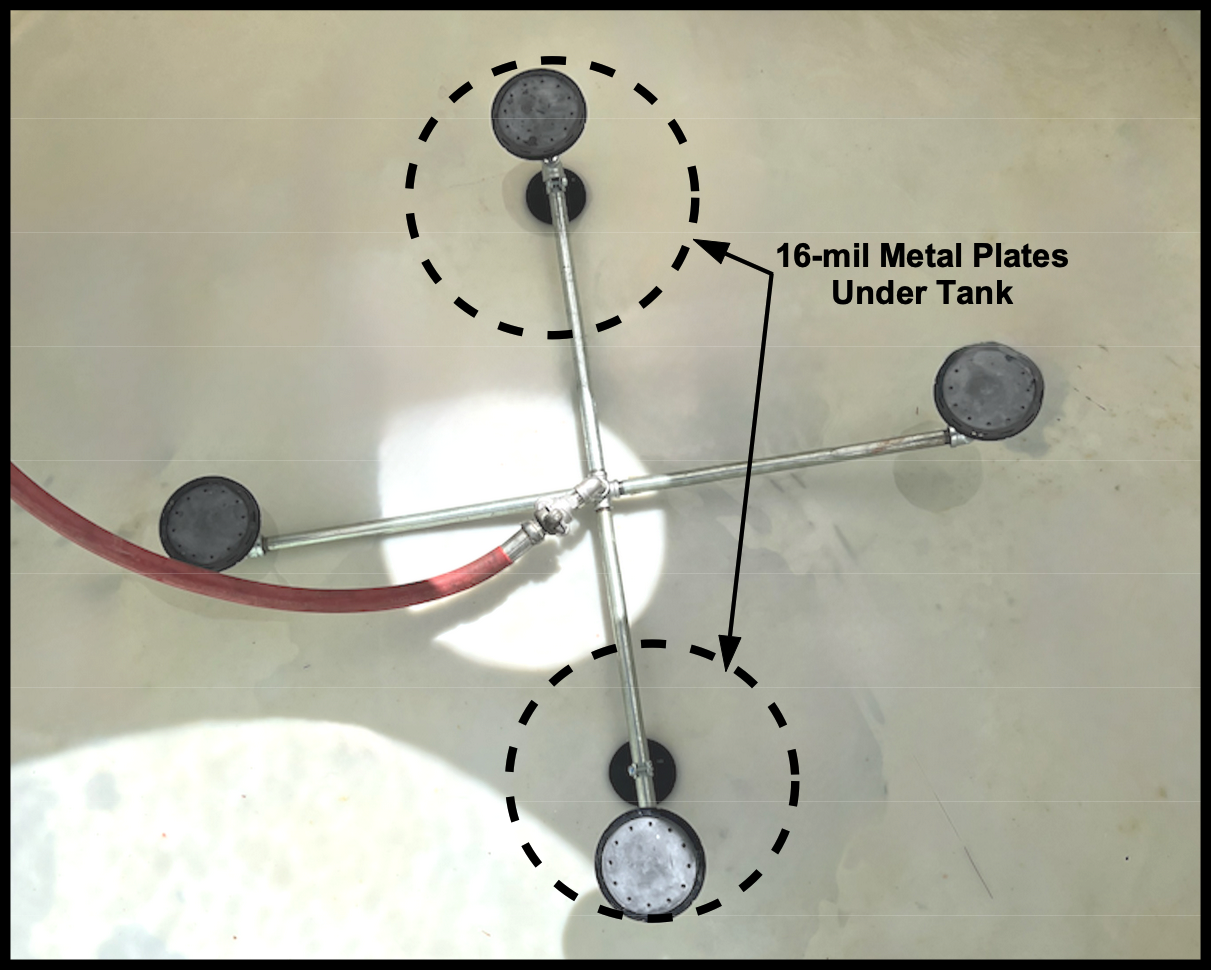

Powerful magnets work through 1/2" air gaps! Placing 16-mil ferrous sheeting on poly or stainless tank bottoms or in tank riser pads allows magnetic anchoring even through thick tank bottoms.

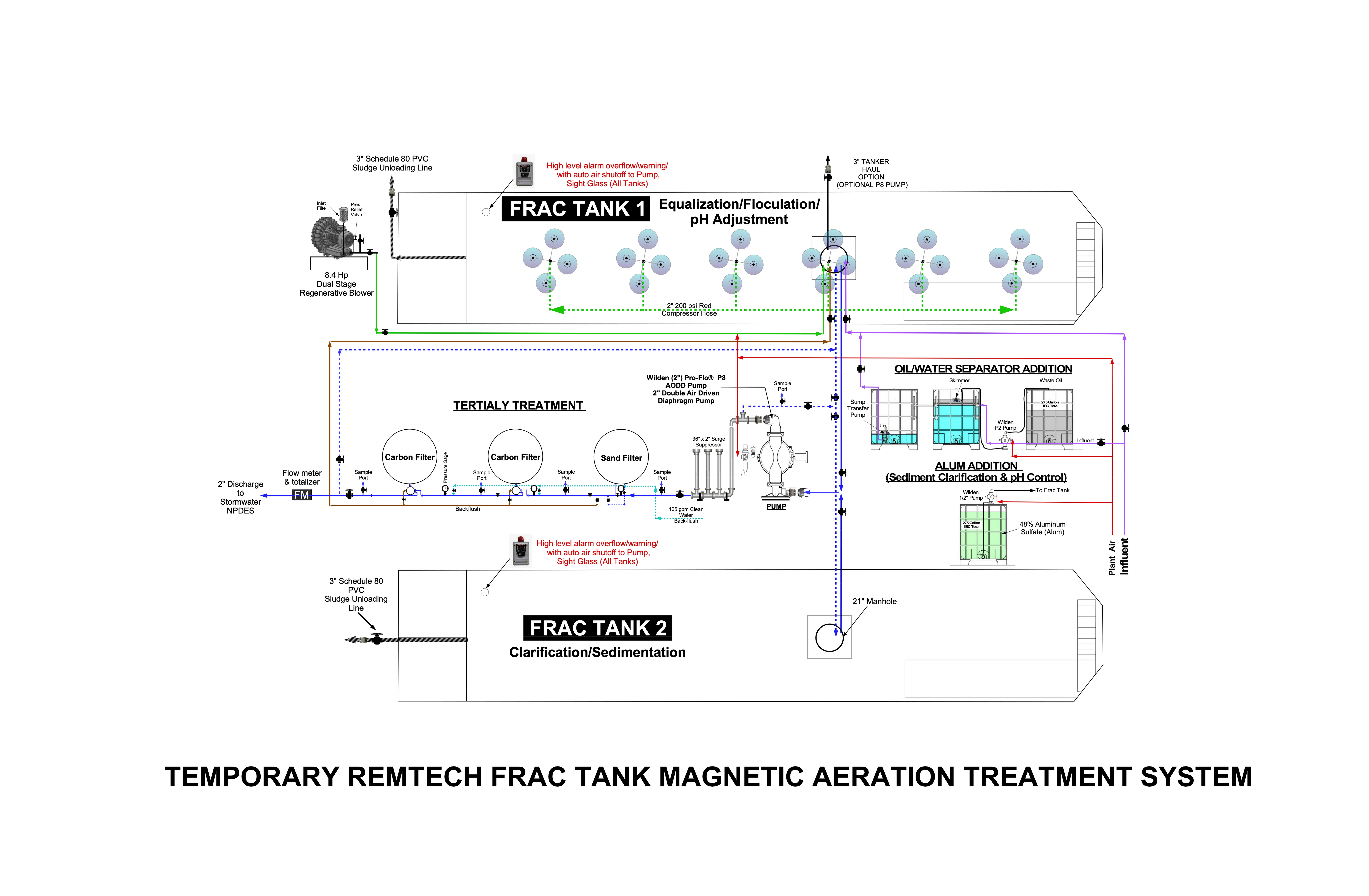

EXPANDABILITY & ADVANCED TREATMENT OPTIONS:
Easily integrate modular tertiary treatment systems such as:
Screening & Clarification
Serpentine Neutralization & Flocculation
Filtration & Dissolved Air Flotation (DAF)
Sludge Dewatering
Advanced Wastewater Treatment
READY FOR RAPID DEPLOYMENT:
Remtech’s Magnetic Aeration and Mixing System delivers cost-effective, plug-and-play solutions—ideal for plant expansions, temporary or permanent installations.
NO PERMANENT ALTERATIONS. MAXIMUM EFFICIENCY, RAPID DEPLOYMENT:
Get started today! Contact Remtech for a solution to your treatment needs by filling out our eform below or calling 800-377-3648 x 4.
Complete the eform below if you would like a Remtech Engineers to contact you to provide a treatment system to meet your specific requirements.
